Ophthalmic & Refraction Unit

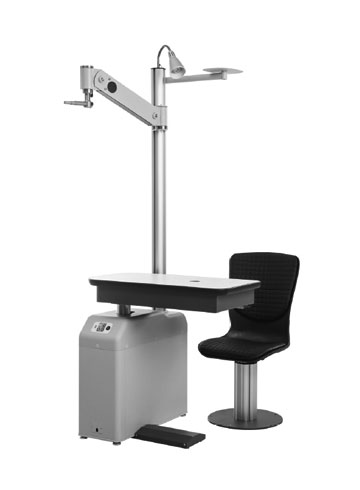

Compact Size for 1 Instrument

Feature

​

- ​Compact Size for 1 Instrument (Auto-Keratomter) table with Counter Balanced(Manual / Classic) Phoropter Arm
- Manual Arm Unit for the Single Instrument or Appliance
- It is a compact product that enables effective ophthalmologic examination in a narrow space.

- Optimized Size for a small space

- Compatible with any brand refraction

- Left Handed & Right Handed are both available

- Applicable Chairs

  • RC-100

  • RC-400



Specification
Unit External Dimension 930(W)*1200(D)*2000(H)
Table Size 900*420
Table Height 815
Rated Voltage AC 230V 50/60Hz
Power Consumption 260VA
Table Rotation Angle 90°
Drawer Size 547(W)*350(D)*59(H)
Allowable Loading Weight of Table 30kg
Net weight 92kg
Chair External Dimension 460(W)*490(L)*870(H)
Seat Height Min.420 ~ Max.670
Up/Down Stroke & Speed 250mm, 15mm/sec
Allowable Loading Weight of Chair 150kg
Net Weight 18kg
Total Net Weight(Unit+Chair) 110kg



- Left Handed & Right Handed are both available.

RT-17 B Feature
Work Table can be turned at 90 degree at max. when ARK at refraction table.
It is easier to change the examination mode to Phoropter from Refraction or in reverse.
Control Panel & USB Port
Equipped with Touch Panel and USB port. Touch Panel makes it easier to control phoropter arm and chair at one seat and USB Port supply DC Power to portable devices like smartphone or tablet without any additional appliances. (The blue bottons are only for auto-arm selection.)
Table Switch
Able to control functions of unit chair as central control system. (The blue buttons are only for auto-arm selection.)
Classic(Manual) Arm
You can shift this classic arm manually and fix it with lever.
Multi-choice of table orientation
According to your working style, you can choose clock-wise orientation (Right-type) table type or counter-clock wise orientation(Left-type) table type.
