RODEK

PRODUCTS

Ophthalmic & Refraction Unit

1 Instrument

Feature

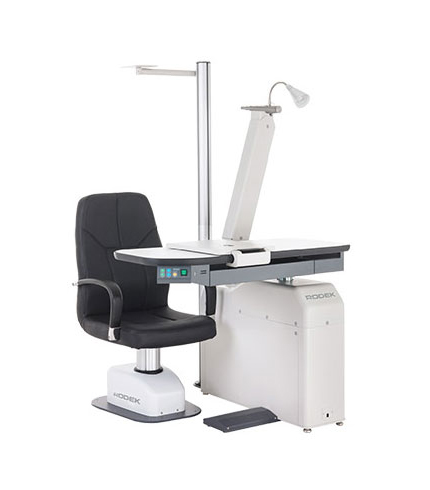

- 1 Instrument (Auto Keratometer) table with Auto Phoropter Arm
- The Broader Table offers the broad space for 1-instrument

- Sliding Over-The-Top Table is the easiest way to move a heavy instrument like Kerato/Refractometer to position of treatment or recession in the small space.

- Left Handed & Right Handed are both available

-Applicable Chairs

RC-100
RC-200
RC-400

Specification

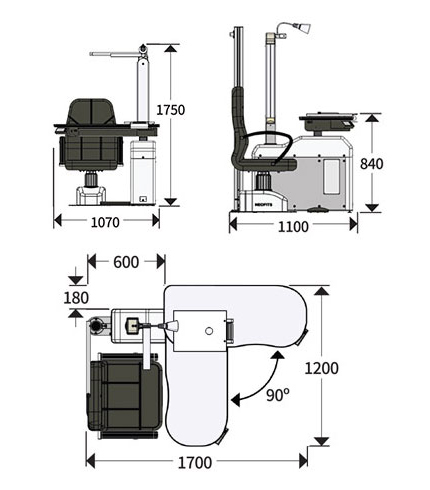

Unit	External Dimension	1100(W)1630(D)1750(H)
	Table Size	920*440mm
	Table Height	860mm
	Rated Voltage	AC110 or 230V/ 50 or 60Hz
	Power Consumption	200VA
	Drawer Size	547(W)358(D)53(H)
	Allowable Loading Weight of Table	30kg
	Net Weight	105kg
Chair	External Dimension	640(W)650(D)1050(H)
	Seat Height	Min.450 ~ Max.700
	Up&Down Stroke, Speed	250mm, 15mm/sec
	Allowable Loading Weight of Chair	150kg
	Net Weight	35kg
Total Net Weight (Unit + Chair)		140kg

- Left Handed & Right Handed are both available.

RT-13 Feature

90 degrees turning table & Over-The-Top Table

The main working table can be turned at 90 degrees at Max. This rotation function is very useful to let patient in or out for treatment without any interruption to the doctor activity. And, Ove-The-Top table enables you to move a heavy Kerato/Refractometer on it very easily to treatment position or recession and stop it at the wanted position in the midway with locking brake in it.

Touch Control Pad & USB Port

With this touch pad, you can control the moves of chair and phoropter arm and LED Lighting On/Off. As well, built-in USB port enables you to recharge the portable devices you want without any additional appliance.

LED Lighting

We adopted eco-friendly LED Light to save you maintaining expenditure and to give a hand in preserving global environment.

Powered Phoropter Arm

The Power Phoropter Arm save your time and space whenever changing the arm position. Furthermore, the desired angle cab be changed easily by touching the position button.　　　　　Optional : Up&Down(stroke 200mm) function is available for the RT-13&RT-15 only

Built-In Drawer

This unit has a drawer under the table to keep operating appliances in. This saves you the space and time.
