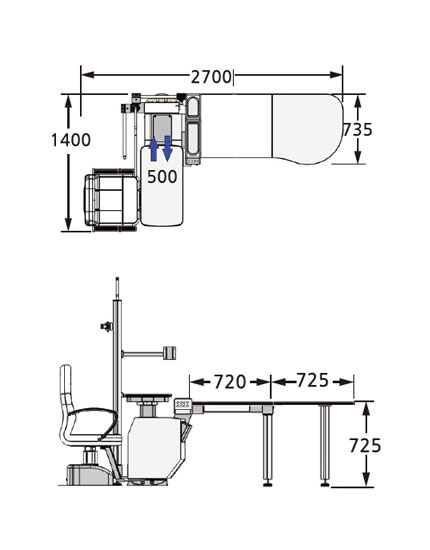

1 Instrument Feature - 1 Instrument (Slit Lamp) table with Counter Balanced(Manual / Classic) Phoropter Arm - 2 types are available depending on your preferred arrangement of instruments, to-the-left(clockwise) or to-the-right(counter-clockwise). - Work table can slide to treatment or recession position according to your operation mode. - Free voltage power supply to slit lamp allows any brand slit lamp to be applied. - Buit-in D/C power slot is ready to recharge retino- or microscope of any brand in like Welch, Allyn, Neitz, Keeler, Heine. - In addition to touch control pad in the main unit, a foot switch(optional) can be applied to control the height of chair unit. - Touch control pad has another full-down key-pad to lower the chair down at the lowest. - Left Handed & Right Handed are both available. - Applicable Chairs RC-200 RC-300 RC-500 Specification Unit External Dimension 1400(W)*2400(D)*2000(H) Table Size 830*415 Side Table Size 1440*660 Table Height Min.755 ~ Max.920 Up & Down Storke, Speed 165mm, 25mm/sec Table Sliding Stroke 500 Drawer Size 480(W)*485(D)*65(H) Allowable Loading Weight of Table 30kg Rated Voltage AC110~220V 50/60Hz Power Consumption 350VA Net Weight 137kg Chair External Dimension 640(W)*720(D)*1080(H) Seat Height Min.475 ~ Max.725 Up & Down Stroke, Speed 250mm, 20mm/sec Allowable Loading Weight of Chair 160kg Net Weight 42kg Total Product Weight (Unit + Chair) 179kg - Left Handed & Right Handed are both available.
